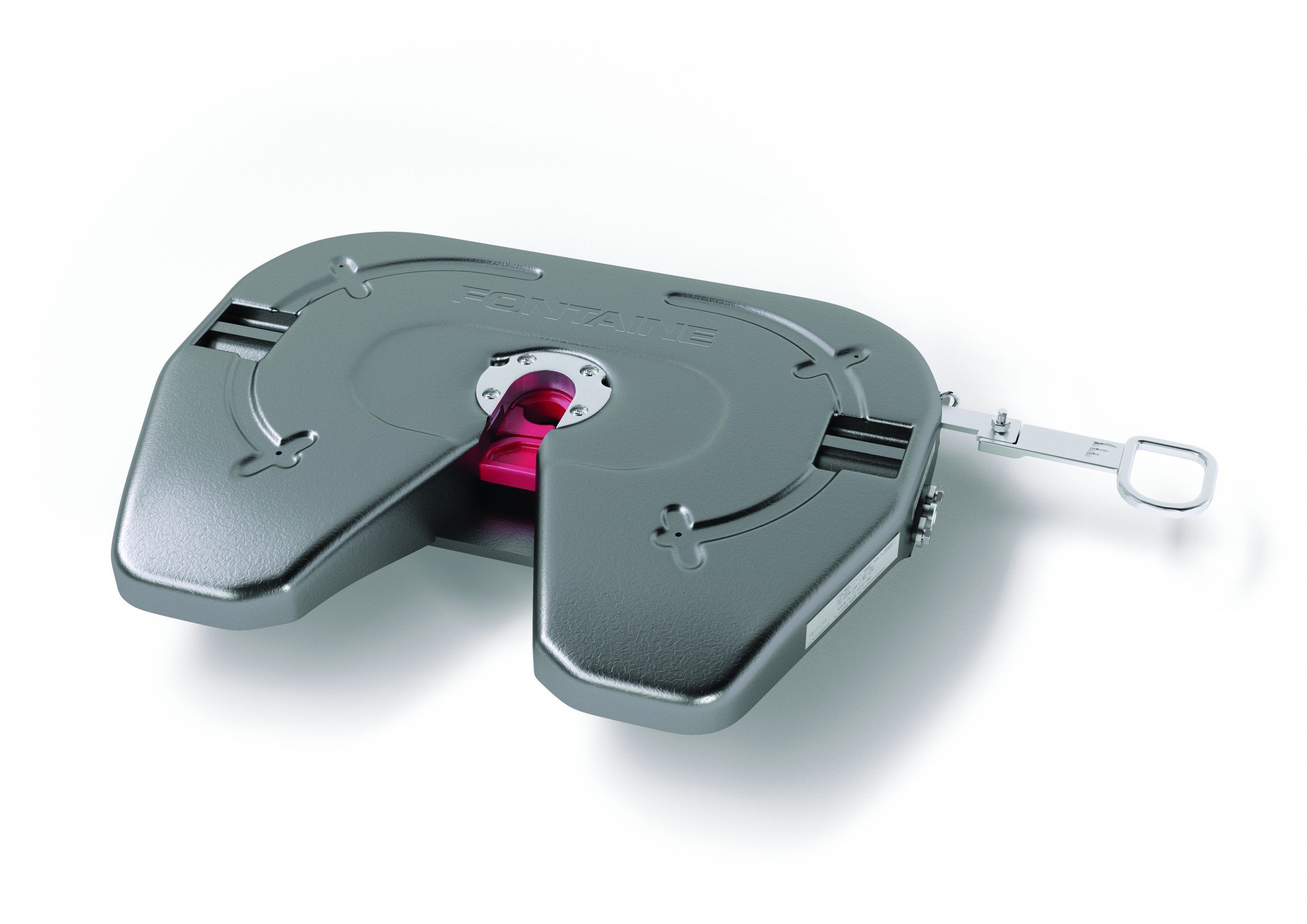

Fontaine 163CI

Code: 12FW021

The Fontaine 163CI is a heavy duty fifth wheel designed for both on-road and off-road applications.

Suitable for use on:

  • Tippers, tankers and harsh terrain.
  • Long-distance haulage with silo, tank and volume carriers using both two and three-axle tractors
  • HGV traffic and off-road terrain.

If you need a fifth wheel for harsh conditions, this is the one for you!

In Stock
Share (1)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 1

Description

The Fontaine 163CI is a fifth wheel suitable for Heavy Duty 2″On-Road and Off-road applications.

Can be used on tippers, tankers and similar.

[Download Instruction manual 163CI]



Additional information

Weight 124 kg
Dimensions 880 × 695 × 185 mm
Specs

Available in 2" lock jaw

E11 55R–01 APPROVAL NO. // HEIGHT MM (DIN 6) // WEIGHT (KG) // IMPOSED LOAD (T) // D-VALUE (KN)
———————————————————————————————
E11 55R–01 4902 // 148mm // 120kg // 20T // 150kN
E11 55R–01 4904 // 185mm // 124kg // 20T // 150kN
Features

No contact, no couple: Specifically designed to reduce miscoupling, the patented TechLock® system’s jaw height sensor will not allow the fifth wheel to close if the kingpin enters at the incorrect height or position.

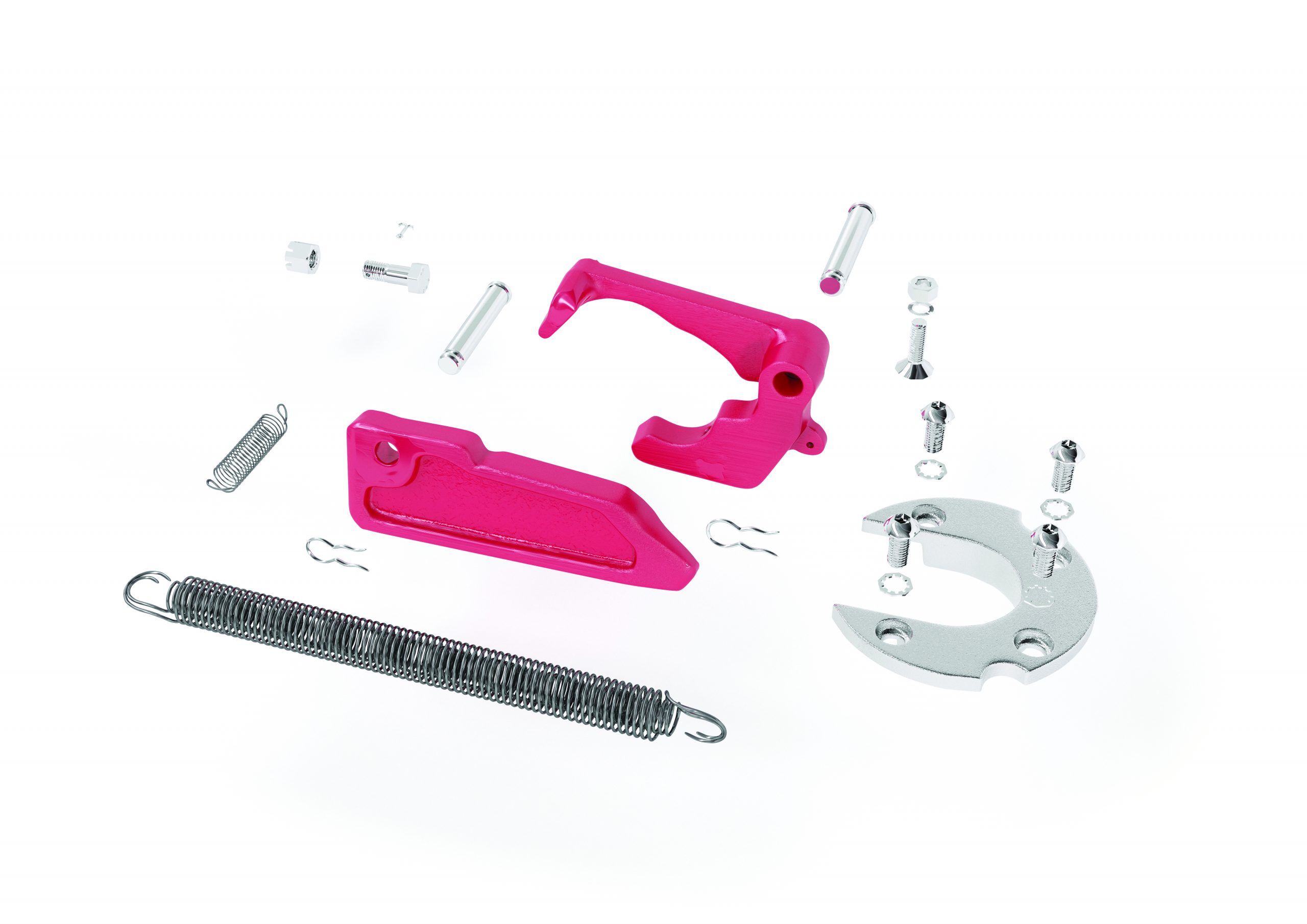

Jaw protection: The profiled protective forging safeguards the TechLock® mechanism from damage due to high-coupling errors.
Reducing kingpin wear: 360° kingpin surface contact extends the life of the kingpin and fifth wheel mechanism.
Light weight, heavy duty: The low weight, high strength fifth wheels are designed to provide a long product life cycle.
